Skyjack SJ30AJE SJ30ARJE Articulating Boom Service Manual 2018-2022 | PDF Instant Download

Skyjack SJ30AJE SJ30ARJE Articulating Boom Service Manual 2018-2022 PDF Service Repair Manual

This downloadable PDF service repair manual is for Skyjack SJ30AJE SJ30ARJE Articulating Boom Service Manual 2018-2022 covering 2018-2022. It is prepared for owners, technicians and DIY repair work, with the service procedures, diagnostics, specifications, diagrams and troubleshooting information needed to maintain and repair the vehicle correctly. The source listing states 188 pages of service information.

What's Included

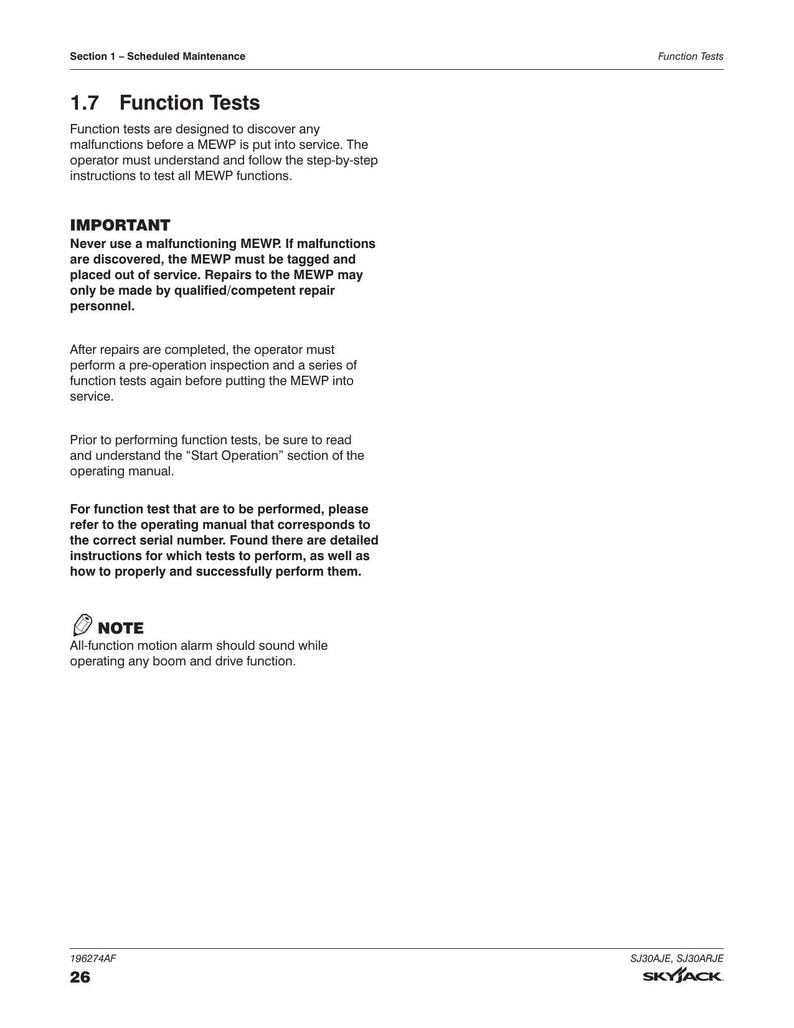

• Scheduled maintenance and inspection procedures with PDI, frequent, and annual checklists
• Hydraulic system service including oil and filter replacement, relief valve adjustment, and pump repair

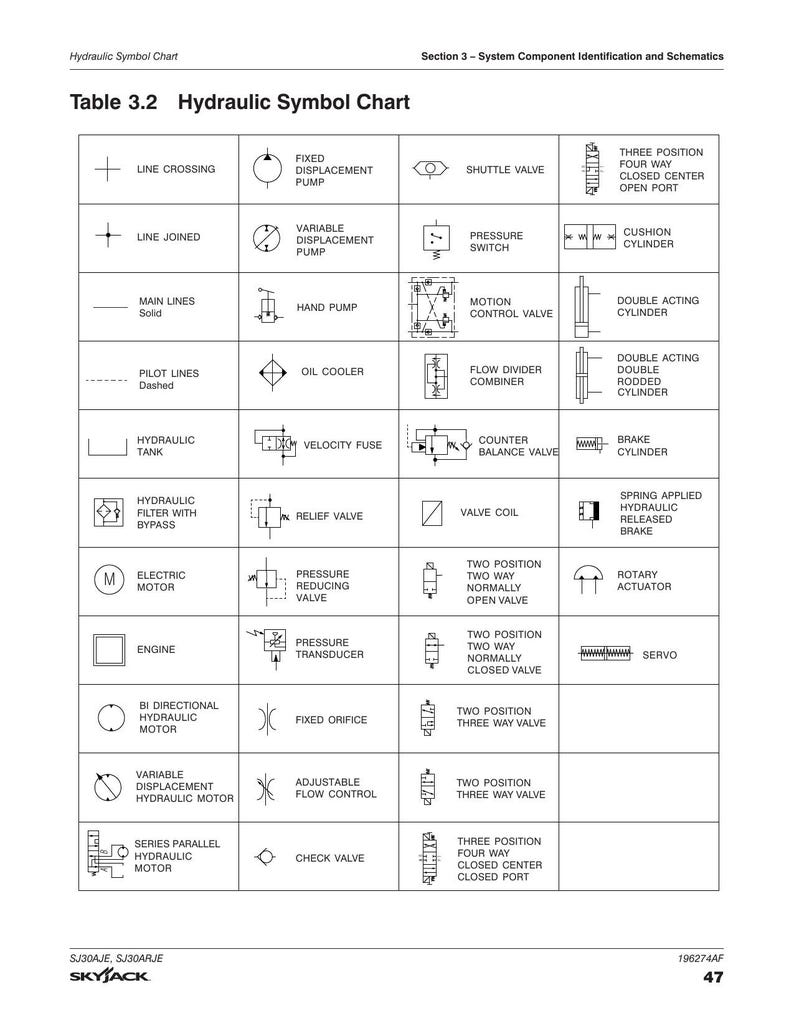

• Hydraulic schematics for SJ30AJE and SJ30ARJE with hose port identification and parts lists

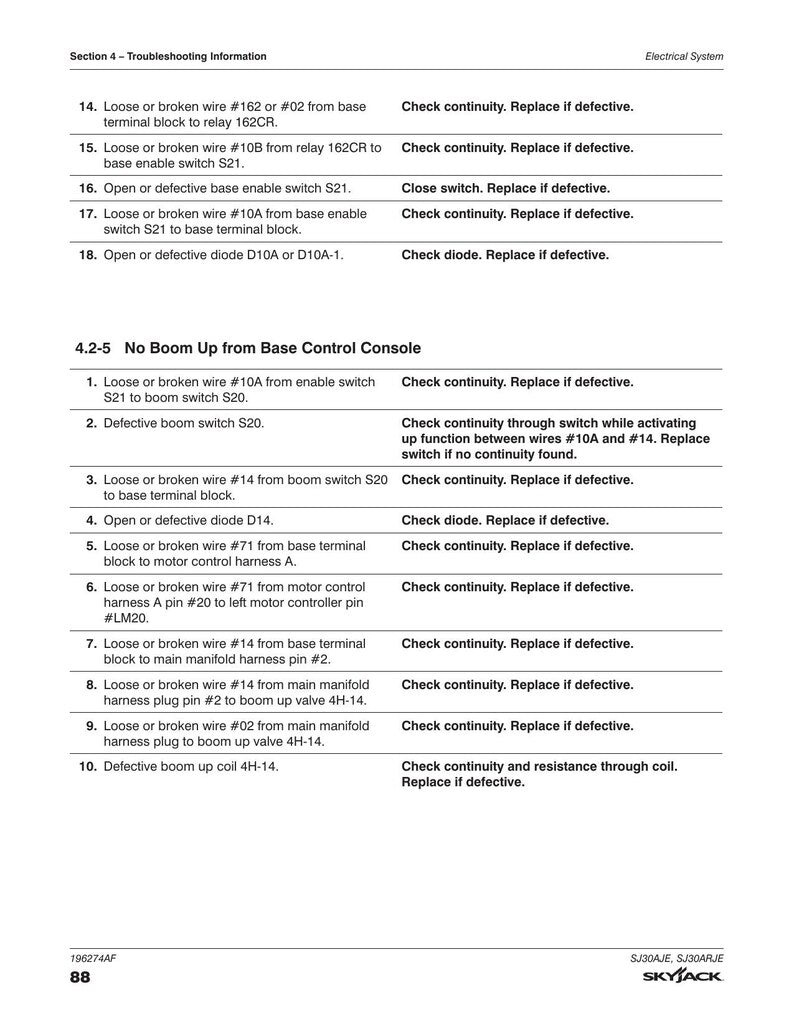

• Electrical system diagnostics covering base controls, platform controls, and motor controller

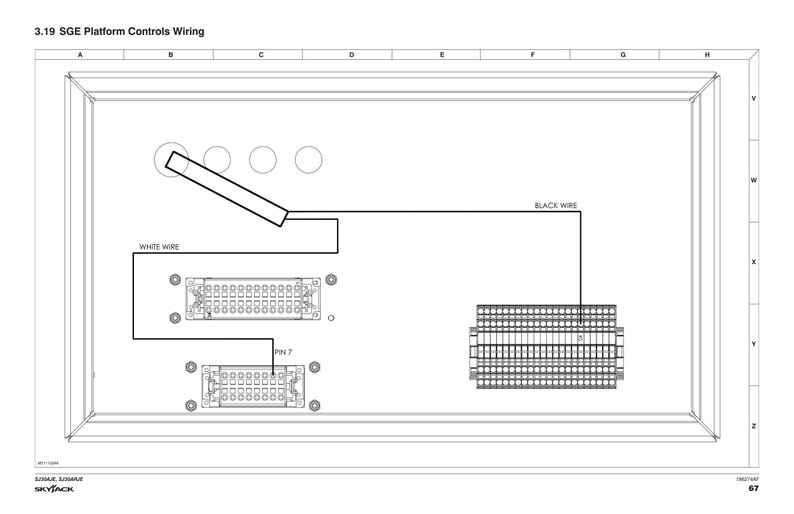

• Full electrical schematics for ANSI/CSA, CE, AS, and KC variants with wire color codes
• Boom, jib, riser, and wear pad inspection, shimming, and cylinder replacement procedures
• Turret rotation, platform leveling, and rotary actuator service and torque sequences
• Load sensing system verification and calibration procedures
• Drive, steer, and brake system troubleshooting and repair
• ZAPI motor controller programming, MDI-CAN display, and PC CAN Console software guide
• Platform control console (HMI) SCM settings, pump motor speed adjustment, and valve characteristics
• Battery replacement, tilt switch setup, torque hub oil level, and base weldment procedures
• OEM torque specifications for fasteners, hydraulic couplings, and MEWP structural components
• High-resolution hydraulic and electrical diagrams for all supported regulatory markets

Models Covered

• Skyjack SJ30AJE Articulating Boom
• Skyjack SJ30ARJE Articulating Boom

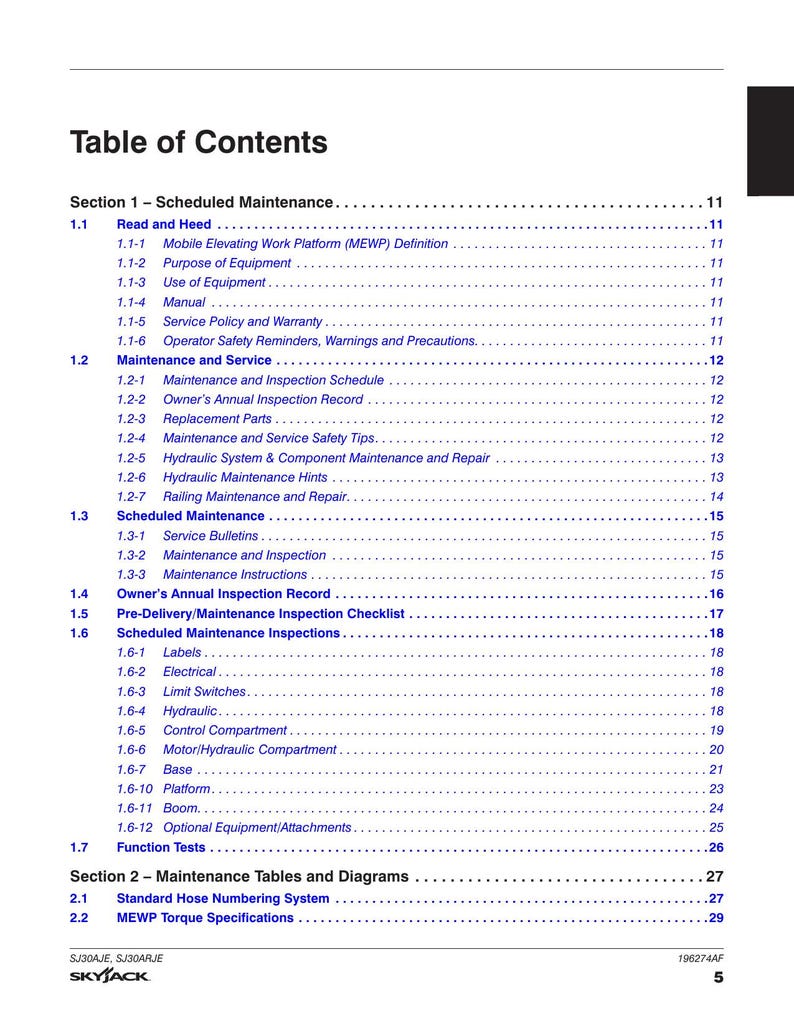

Table Of Contents

• Section 1 - Scheduled Maintenance

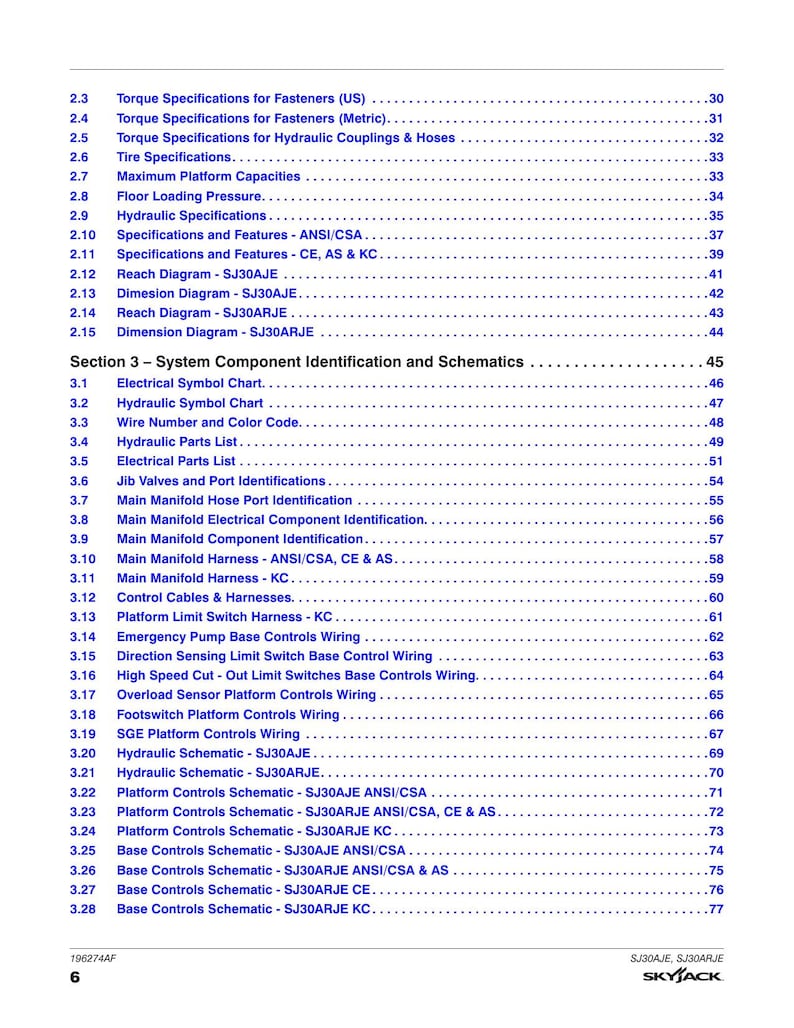

• Section 2 - Maintenance Tables and Diagrams
